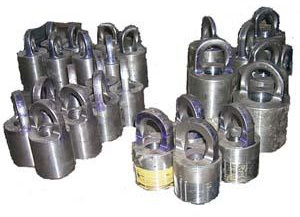

Lifting Cap/Plug


product name: Lifting plugs
Description:
Lifting caps are special tools in the petroleum, gas and geological exploration, designed for
 lifting drilling tools such as heavy pipes and other threaded pipes in the course of drilling well.
Specification
Specifications and parameters of Lifting caps
CONNECTION
O.D(mm)
LENGTH
(mm)
CONNECTION
O.D.
(mm)
LENGTH
(mm)
7 5/8 REG Pin
φ210
290
7 5/8 REG Box
φ230
290
6 5/8 REG Pin
φ190
280
6 5/8 REG Box
φ200
280
NC50 Pin
φ155
270
NC50 Box
φ160
260
NC46 Pin
φ150
270
NC46 Box
φ160
260
NC38 Pin
φ115
260
NC38 Box
φ120
270
NC31 Pin
φ100
210
NC31 Box
φ120
220
2 3/8 REG Pin
φ80
190
2 3/8 REG Box
φ110
200
NC26 Pin
φ89
200
NC26 Box
φ110
200
3 1/2 REG Pin
φ110
260
3 1/2 REG Box
φ130
270
4 1/2 REG Pin
φ145
270
4 1/2 REG Box
φ160
260
2 7/8 EUE Pin
φ80
220
2 7/8 EUE Box
φ80
220



How to order the Lifting Caps

When ordering, please specify:

• Name and part number of assembly

• Connection, if nonstandard • O.D. And Length
