ROTARY SLIPS
Varco design SDS, SDML, and SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.
SDS-Short Rotary Slips
| Slip Body size (inch) |
3 1/2 |
4 1/2 |
| API pipe size (OD inch) |
2 3/8 |
2 7/8 |
3 1/2 |
3 1/2 |
4 |
4 1/2 |
| Parts No. slips c/w inserts |
3901 |
3903 |
3905 |
3907 |
3909 |
3911 |
| Weight. Slips c/w inserts lb (kg) |
117 (53) |
111 (50) |
107 (48.5) |
143 (65) |
136 (62) |
127 (58) |
| Qty of inserts |
24 |
24 |
24 |
36 |
36 |
36 |
| Weight of inserts lb (kg) |
21 (9.5) |
16 (7) |
10 (4.5) |
32 (14.5) |
25 (11) |
16 (7) |
SDML-Medium Rotary Slips
| Slips Body Size (inch) |
3 1/2 |
4 1/2 |
5 |
5 1/2 |
| API pipe size (OD inch) |
2 3/8 |
2 7/8 |
3 1/2 |
3 1/2 |
4 |
4 1/2 |
4 |
4 1/2 |
5 |
4 1/2 |
5 |
5 1/2 |
| P/N Slips c/w inserts |
15524 |
15523 |
15522 |
15563 |
15564 |
15565 |
15567 |
15568 |
15569 |
15571 |
15572 |
15573 |
| Weight slips c/w inserts lb (kg) |
193 (87.5) |
188 (85) |
180 (81.5) |
207 (94) |
199 (90) |
188 (81.5) |
204 (92.5) |
196 (89) |
185 (84) |
200 (91) |
185 (84) |
181 (82) |
| Qty of inserts |
30 |
30 |
30 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
| Weight of inserts lb (kg) |
26 (12) |
22 (9.5) |
13 (6) |
39 (17.5) |
31 (14) |
20 (9) |
39 (17.5) |
31 (14) |
20 (9) |
39 (17.5) |
31 (14) |
20 (9) |
SDXL-Extra Long Rotary Slips SDXL & SDL Inserts
| Slips Body Size (inch) |
4 1/2 |
5 |
5 1/2 |
| API PIpe OD (Inch) |
3 1/2 |
4 |
4 1/2 |
4 |
4 1/2 |
5 |
4 1/2 |
5 |
5 1/2 |
| P/N slips c/winserts |
15515 |
15514 |
15513 |
15518 |
15517 |
15516 |
15521 |
15520 |
15519 |
| Weight slips c/w inserts lb (kg) |
229 (104) |
219 (99) |
205(93) |
237(105) |
227(103) |
213(96.5) |
234(106) |
224(101.5) |
210(95) |
| Qty of inserts |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
54 |
| weight of inserts lb (kg) |
47(21) |
37(17) |
23(10.5) |
47(21) |
37(17) |
23(10.5) |
47(21) |
37(17) |
23(10.5) |
DCS DRILL COLLAR SLIPS

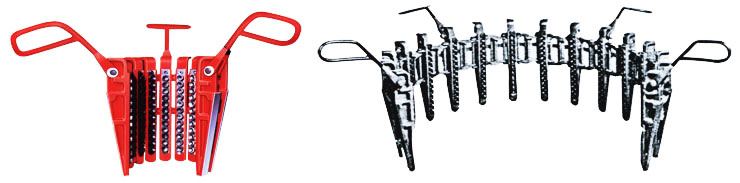

Each segment of Varco design Drill Collar slips is a rugged drop forging, with an extra long back to provde maximum support to the circular button gripping elements. Full wrap-around design and circular buttons assure positive holding and slip setting. Drill Collar slips are flat on top to accommodate the MP Clamp.
DCS-Multi-segment Drill Collar slips
| Slip Type |
DCS-S |
DCS-R |
DCS-L |
| Drill Collar OD (Inch) |
3-4 |
4- 4 7/8 |
4 1/2-6 |
5 1/2-7 |
6 3/4-8 1/4 |
8-9 1/2 |
8 1/2-10 |
9 1/4-11 1/4 |
11-12 3/4 |
12-14 |
| P/N slip c/w Circular Buttons |
2572 |
2573 |
2552 |
2550 |
2503 |
2507 |
2530 |
2508 |
2534 |
2536 |
| Weight, complete set, lb (kg) |
112 (51) |
103 (47) |
120 (54) |
112 (51) |
154 (70) |
173 (78) |
185 (84) |
198 (90) |
213 (96) |
207 (94) |
| Total number of segments |
7 |
7 |
9 |
9 |
10 |
12 |
13 |
14 |
17 |
17 |
| total number of intermediate segments |
5 |
5 |
7 |
7 |
9 |
10 |
11 |
12 |
15 |
15 |
| total number of hinge pins |
6 |
6 |
8 |
8 |
10 |
11 |
12 |
13 |
16 |
16 |
| use in insert Bowel Number |
API or No.3 |
No.3 |
No.2 |
No.1 |

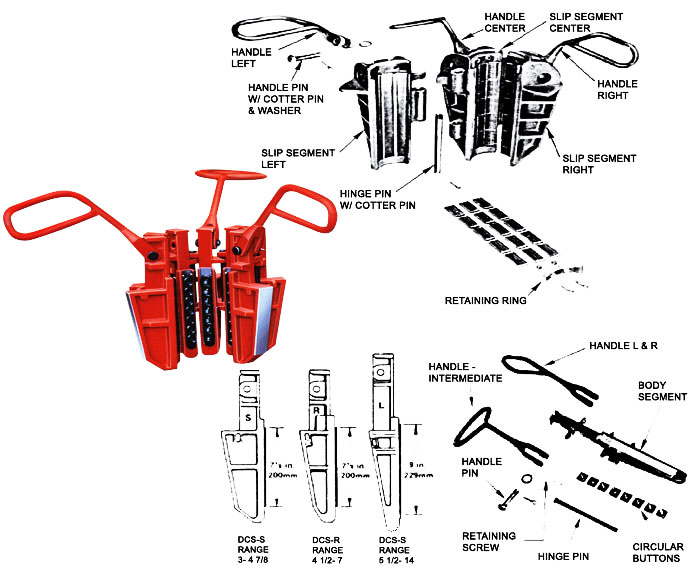

DCS-Multi-segment Drill Collar slips
| Slip type |
DCS-S |
DCS-R |
DCS-L |
| Description |
P/N |
lb |
kg |
P/N |
lb |
kg |
P/N |
lb |
kg |
| Segment- Right End |
2568 |
11 |
5 |
2554 |
10 |
4.5 |
2510 |
12 |
5.5 |
| Segment- left End |
2569 |
11 |
5 |
2555 |
10 |
4.5 |
2511 |
12 |
5.5 |
| Segment-Intermediate |
2570 |
11 |
5 |
2556 |
10 |
4.5 |
2512 |
12 |
5.5 |
| Hinge pin w/Cotter Pin |
2525 |
- |
- |
2525 |
- |
- |
2520 |
0.7 |
0.3 |
| Handle Pin w/washer & Cotter Pin |
3769 |
0.5 |
0.2 |
3769 |
0.5 |
0.2 |
3769 |
0.5 |
0.2 |
| Handle for right & left end Segment |
3765 |
3.5 |
1.5 |
3765 |
3.5 |
1.5 |
3765 |
3.5 |
1.5 |
| Handle for intermediate segments |
3766 |
4 |
2 |
3766 |
4 |
2 |
3766 |
4 |
2 |
| Retaining Cotter pin |
71936 |
- |
- |
- |
- |
- |
71936 |
- |
- |
| Retaining screw w/lock washer |
--- |
- |
- |
3748 |
- |
- |
- |
- |
- |
DCS-Multi-segment Drill Collar slips
| Slip set |
Drill Collar OD (in) |
P/N |
Weight |
Qty |
| lb |
kg |
| DCS-S |
3-4 |
2628-49 |
13 |
6 |
49 |
| 4-4 7/8 |
2620-49 |
8 |
3.5 |
49 |
| DCS-R |
4 1/2-6 |
2628-63 |
16 |
7 |
63 |
| 5 1/2-7 |
2620-63 |
11 |
5 |
63 |
| DCS-L |
6 3/4-8 1/4 |
2630-88 |
15 |
7 |
88 |
| 8-9 1/2 |
2630-96 |
16 |
7 |
96 |
| 8 1/2-10 |
2627-104 |
26 |
12 |
104 |
| 9 1/4-11 1/4 |
2630-112 |
19 |
8.5 |
112 |
| 11-12 1/4 |
2625-136 |
13 |
6 |
136 |
| 12-14 |
2630-136 |
16 |
7 |
136 |
CASING SLIPS
Varco CMS-XL slips are designed to handle casing from 6 5/8" to 30 inches OD. All slips have an API taper of 4"/ft on the diameters.
All CP-S slips (Conductor Pipe Slip) are furnished with 4 handles.
| CSG Size |
6 5/8" |
7" |
7 5/8" |
8 5/8" |
9 5/8" |
10 3/4" |
11 3/4" |
13 3/8" |
16" |
18 5/8" |
20" |
24" |
26" |
30" |
| CMS-XL |
5315 |
5301 |
5398 |
5305 |
5307 |
5309 |
5311 |
5313 |
5325 |
5333 |
5329 |
5331 |
5346 |
5342 |
| CP-S |
|
|
|
|
|
|
|
|
|
|
|
5338 |
5344 |
5340 |
CMS-XL
| Description |
P/N |
Weight |
| lb |
kg |
| Segment-Right end |
5320 |
12 |
5.5 |
| Segment --Left end |
5321 |
12 |
5.5 |
| Segment-Intermediate |
5322 |
12 |
5.5 |
| Hinge pin with Cotter Pin |
2525 |
0.6 |
0.3 |
| Handle pin iwth washer and cotter pin |
3769 |
0.5 |
0.2 |
| Handle for right and left segment |
3765 |
3.5 |
1.5 |
| Handle for intermediate segment |
3766 |
4 |
2 |
| Retaining screw with lock washer |
3748 |
0.3 |
0.14 |
Circular Buttons for CMS-XL & CP-S slips ps
| Slip set |
Casing OD (in) |
Circular Buttons |
| P/N |
lb |
kg |
qty |
| CMS-XL |
6 5/8 |
2628-144 |
36 |
16 |
144 |
| 7 |
2619-144 |
36 |
16 |
144 |
| 7 5/8 |
2630-144 |
24 |
11 |
144 |
| 8 5/8 |
2630-156 |
26 |
12 |
156 |
| 9 5/8 |
2630-168 |
28 |
13 |
168 |
| 10 3/4 |
2630-180 |
30 |
14 |
180 |
| 11 3/4 |
2627-204 |
51 |
23 |
204 |
| 13 3/8 |
2630-216 |
36 |
16 |
216 |
| 16 |
2631-252 |
43 |
19.5 |
252 |
| 18 5/8 |
2626-300 |
60 |
27 |
300 |
| 20 |
2631-312 |
52 |
23.3 |
312 |
| 24 |
2631-360 |
60 |
27 |
360 |
| 26 |
2631-396 |
64 |
29 |
396 |
| 30 |
2631-444 |
72 |
32.5 |
444 |
| CP-S |
24 |
2631-156 |
26 |
12 |
156 |
| 26 |
2631-168 |
28 |
13 |
168 |
| 30 |
2631-192 |
32 |
14.5 |
192 |
Circular Buttons for CMS-XL & CP-S slips ps
| Pipe OD (inch) |
24 |
26 |
30 |
| P/N-Slip c/w Circular Buttons |
5338 |
5344 |
5340 |
| Weight c/w circular buttons lb (kg) |
276 (125) |
296 (134) |
319 (145) |
| Total No. Segments |
13 |
14 |
16 |
| Total No. Hinge spacer |
12 |
13 |
15 |
