Upper and Lower Kelly Valve


5,000; 10,000; 15,000 psi. W.P.

Ball Type Kelly Valve provides a quick, sure shutoff in the drill string that can repay the cost of the valve quickly in the mud savings and kick protection.

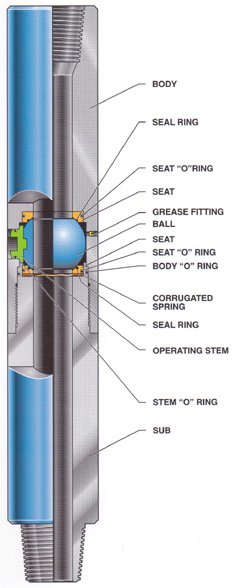

This valve can be used as either an upper or lower kelly cock. It has an exclusive corrugated spring to insure a positive seal. Standard pressure rating is 10,000 pound test, but higher pressure ratings are available on special order. The ball is stainless steel, and closes easily. The WN-2 Kelly valve is full-opening, so it does not interfere with the running of tools such as core barrels or survey instruments. Its streamlined O.D. is the same as the tool joint O.D.

Upper Kelly Valve

The WN-2 Kelly Valve is also available with left-hand threads for use as an upper kelly cock. When used between the kelly and swivel, it provides a positive means for shutting off flow in the drill string at any time. The inline body design will not hang up on the catline or interfere with operations.

Lower Kelly Valve

When used as a lower kelly cock, the WN-2 Kelly Valve provides a closure to stop mud loss when the kelly is disconnected from the drilling string. Just close the valve before disconnecting and mud in the kelly and hoses stays there. With the cost of oil mud, biopolymers and other costly drilling fluids, the valve can pay for itself quickly. The rig floor and substructure stays much cleaner and safer as well. Its streamlined O.D. allows it to pass through the blowout preventer smoothly.

Connection OD ID Working
Length
Weight
3 1/2" IF 5"
5 1/4"
2"
2 7/16"
28" 150 lbs
165 lbs
4" FH
4 1/2" FH 6 3/8" 2 3/4" 28" 220 lbs
4 1/2" XH
4 1/2" IF
4 1/2" XH 7" 2 3/4" 28" 250 lbs
4 1/2" FH
4 1/2" IF
5 1/2" FH
6 5/8" Reg LH 7 3/4" 2 3/4" 28" 275 lbs
6 5/8" Reg LH 8" 3 1/4" 28" 325 lbs

Popular sizes shown here: Other sizes and custom specifications upon request
