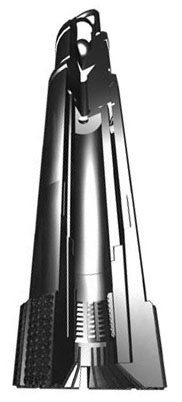

Cone Fisher

The cone fisher is a special tool for fishing of objects such as drill bit cone dropped in hole during drilling or work over operation.With strong grinding force ,it is suitable for the fishing and coring in hard formation.

Technical specifications and parameters

Type Body O.D (mm) Steel ball diameter Thread API Max.Catch O.D (mm)
YDQ153 142 32 NC38 95
YDQ165 152 32 NC38 103
YDQ195 184 32 NC50 126
YDQ210 200 40 NC50 135
